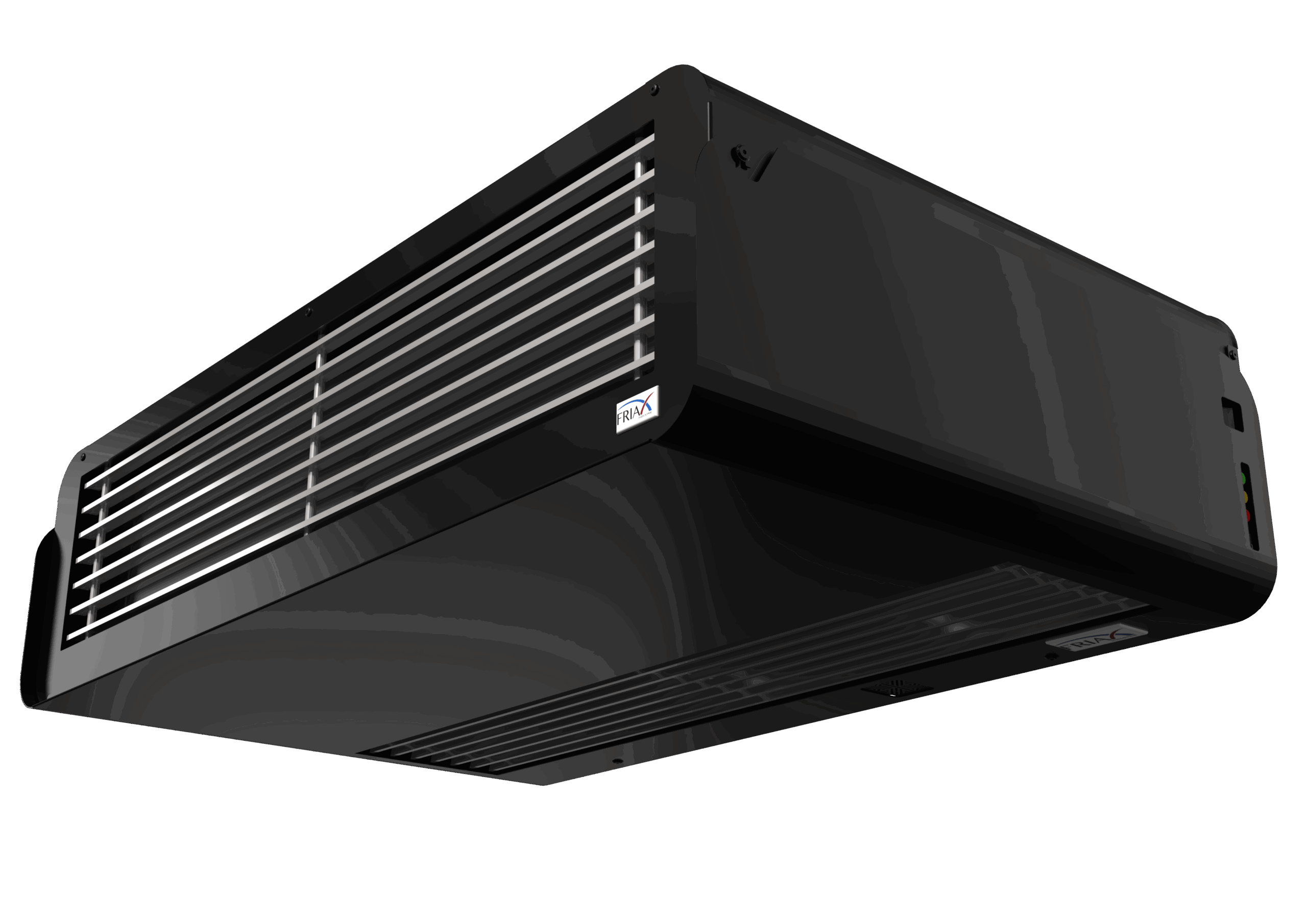

The EVPL2 mounts at ceiling level, which keeps every wall available for racking. It spans the widest capacity range in the Friax split family, from small private cellars up to substantial commercial storage, and takes cooling, heating and humidification in the Vintage specification.
Key features
- Evaporator in the cellar plus a remote condensing unit — choose GCH (air), GCG (ducted air) or GCW (water)
- R513A refrigerant
- 230 V single phase, 50 Hz
- Flare gas and liquid connections; condensing units pre-charged for a 6 m line run
- WineSupervisor connectivity available (KWSP-I Modbus or KWSP-III connected)
- Vintage finish, black body
- Six capacities: SPC30 (780 W), 48 (1130 W), 82 (1470 W), 122 (2370 W), 170 (2750 W), 230 (3440 W)
- Heating from 850 W to 2000 W depending on size
- Air flow 400 to 1070 m³/h; one to three 200 mm fans
- Net weight 19 to 40 kg
- Pairs with GCH, GCG or GCW condensing units, sizes 30 to 230
Article codes: SPC{30-230}_HEVPL2_VTX (air) · _GEVPL2_VTX (ducted air) · _WEVPL2_VTX (water).
Pricing on request. Every cellar is sized from a thermal load calculation, so BartechCo quotes each unit against your project. Request a quote or contact us for specifications, lead times and installation.
